Foot Traffic Analytics: How People Counting Software Turns Footfall into Revenue

Foot traffic analytics is the process of counting and analysing the people who visit a store, so retailers can improve conversion, staffing and layout. People counting software, often camera-based AI, records how many shoppers enter, when they come, where they go and how long they stay. Retailers then compare those numbers with sales to find where revenue is being lost.

Key takeaways

• Sales data shows who bought. Foot traffic analytics shows who walked in and left without buying.

• Store conversion rate = transactions ÷ foot traffic × 100. Without counting visitors, you cannot measure it.

• Camera-based AI people counting can run on existing CCTV and also gives dwell time, heatmaps and queue data.

• In one case, Godiva's Regent Street store raised conversion from 24% to 26.5% in six weeks after it started counting traffic.

• In India, retailers usually call this "footfall analytics". The metrics and formulas are the same.

What is foot traffic analytics?

Foot traffic analytics measures how many people visit a physical location and how they behave there. For retailers, it usually means in-store counting at entrances and zones. It is different from location data collected from mobile phones.

The term is used for two different things, and search results often mix them up:

This guide covers in-store foot traffic analytics, the kind that turns footfall into revenue decisions.

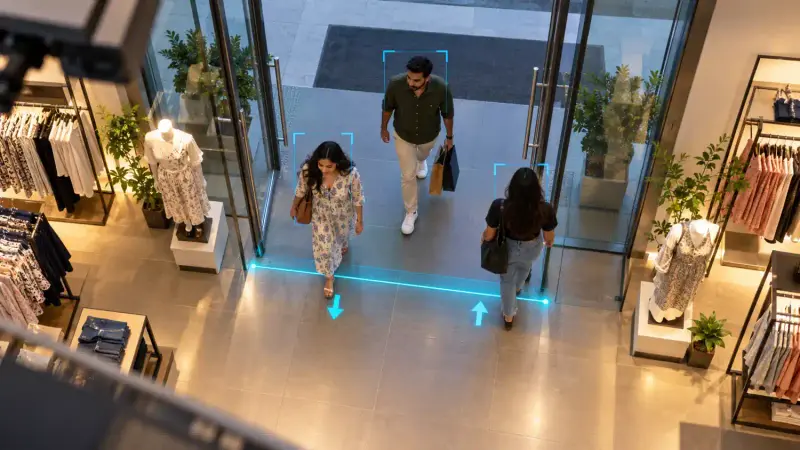

How does people counting software work?

People counting software, also called a people counting system, detects each person crossing a virtual line or entering a zone, then counts and timestamps them. Older systems, such as an infrared footfall counter above the door, use beam or thermal sensors. Modern systems use AI on camera video, which is more accurate and captures more than a simple count.

Camera-based AI works in five steps:

1. A camera covers the entrance or zone, ideally from above or at a steep angle.

2. Video streams to the analytics software over RTSP from the camera or NVR.

3. Computer vision detects each person and tracks them frame by frame.

4. A virtual counting line records an "in" or "out" each time someone crosses it, with staff excluded where configured.

5. Counts flow into a dashboard by hour, day, store and zone.

Because the same video also shows where people go once inside, one camera network can feed footfall, heatmaps and queue analytics at once. To learn more about the wider technology, read our guide to what video analytics is.

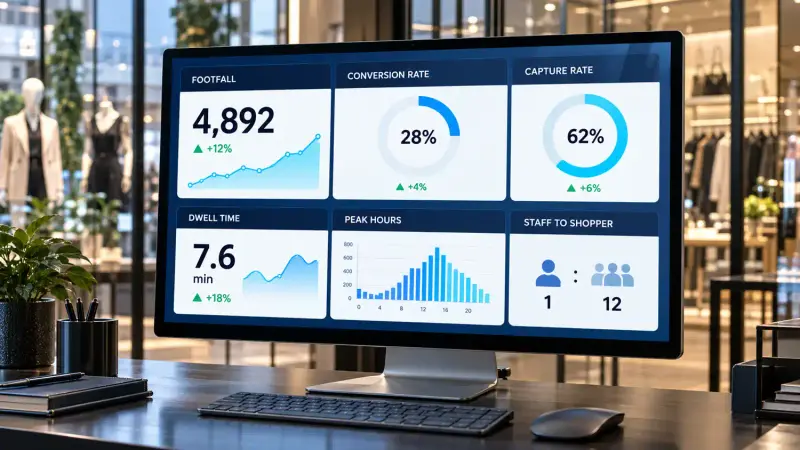

What are the 6 foot traffic metrics that matter?

Six metrics cover most retail decisions: footfall, conversion rate, capture rate, dwell time, peak hours and staff-to-shopper ratio. Each one answers a specific question about lost revenue.

1. Footfall (visitor count) - total people entering. This is the baseline for everything else.

2. Conversion rate - the share of visitors who buy. It is the most important retail KPI that most stores cannot see.

3. Capture rate - passers-by who walk in, as a share of everyone passing the storefront. It tests windows, displays and signage.

4. Dwell time - how long shoppers stay in the store or a zone. Longer dwell near a category usually signals interest.

5. Peak hours - when traffic actually arrives, by hour and day, which is often different from when managers assume.

6. Staff-to-shopper ratio - visitors per staff member on the floor. If the ratio is too high at peak hours, conversion drops.

How do you calculate store conversion rate?

Store conversion rate is the number of transactions divided by foot traffic, multiplied by 100. You need a reliable visitor count from people counting software, because your POS only records the transactions.

Conversion rate = (Transactions ÷ Foot traffic) × 100 (T-ROC, 2025)

Worked example: a store records 1,000 visitors in a day and 100 transactions.

(100 ÷ 1,000) × 100 = 10% conversion rate

Here is why counting matters. Imagine a store whose traffic rises from 2,000 to 3,000 visitors while conversion falls from 10% to 8.4%. Transactions rise from 200 to 252, so the store looks healthy. Yet at the original 10% rate, those 3,000 visitors would have produced 300 transactions. The 48 lost sales usually point to understaffing or long queues at peak times. Without foot traffic data, that loss is invisible.

How does foot traffic analytics turn footfall into revenue?

Foot traffic analysis creates revenue when it changes decisions about staff, displays, queues and marketing. Five actions deliver most of the gains.

1. Staff to real peaks - move shifts to match the hours when traffic actually arrives, not fixed rosters.

2. Test windows and displays - change a window or entrance display, then compare capture rate before and after.

3. Manage queues - alert managers to open another counter when the queue grows, before shoppers give up.

4. Use zone heatmaps - find cold zones and dead aisles, then move high-margin products to where shoppers actually go.

5. Measure campaigns - check whether a sale, ad or festive offer brought more people in, and whether they converted.

The results can show up quickly. After Godiva's Regent Street store in London started using traffic counting, transactions rose 10%. Conversion went from 24% to 26.5% within six weeks (Sensormatic, 2019).

How does foot traffic analytics differ in India and the US?

The metrics are the same in both markets, but the patterns and priorities are different. In India, retailers talk about "footfall" and deal with large festive spikes. In the US, labour cost and staffing efficiency usually drive adoption.

India - footfall analytics:

• Mall footfall is uneven. Weekends, evenings and the festive season around Diwali can bring several times normal traffic.

• Multi-store chains in Tier 1 and Tier 2 cities need a single view of footfall and conversion across stores.

• Many stores already have CCTV, so adding analytics to existing cameras is often more practical than installing new sensors.

US - foot traffic analytics:

• High hourly labour costs make staff scheduling against real traffic a direct cost saving.

• Retailers use traffic data to compare store performance across regions and formats.

• Holiday peaks such as Black Friday drive queue and staffing analytics.

What are the most common people counting mistakes?

Most foot traffic analytics projects that disappoint fail on setup, not technology. Five mistakes cause most bad data.

1. Poor camera placement - cameras mounted too low or at a shallow angle merge people walking in groups. Mount above the entrance or at a steep angle.

2. Counting staff as shoppers - without staff exclusion, every shift change and stockroom trip inflates footfall and makes conversion look worse than it is.

3. Ignoring camera health - a blocked, shifted or offline camera silently stops counting. Camera health monitoring catches data gaps the same day.

4. Looking at footfall without sales - visitor counts alone do not show lost revenue. Connect POS data to measure conversion.

5. Ranking stores without a baseline - stores differ in size, location and catchment. Track each store against its own trend before comparing them.

How do you choose people counting software?

The right people counting software fits the cameras you already own and grows into wider retail analytics. Check these points before you buy:

• Camera compatibility - works with existing IP cameras and NVRs over RTSP or ONVIF, so no new hardware is needed at most doors.

• Accuracy in real conditions - counts groups, busy entrances and changing light correctly, and excludes staff.

• POS integration - joins visitor counts with transactions to show conversion by hour and store.

• Multi-store dashboards - one view of footfall, conversion and peak hours across every location.

• More than counting - heatmaps, dwell time, queue alerts and loss prevention from the same camera feed.

• Data control - on-premise, edge or cloud deployment to match your privacy and connectivity needs.

Start with a 4-8 week pilot in a few stores and compare the counts against a manual tally. If you are unsure which cameras are ready, an AI consultation on your existing CCTV can map coverage before you roll out.

How does StorePulse count and analyse footfall?

StorePulse by Transline Technologies is an AI analytics layer that runs on top of your existing CCTV or VMS. People counting is one of its modules, alongside heatmaps, queue analytics and loss prevention. It is not a separate counting product.

With StorePulse, retailers can:

• Count entries and exits using cameras already installed at entrances. Some cameras may need repositioning for an accurate overhead or angled view.

• See footfall, conversion (when POS data is connected), dwell time and peak hours in one dashboard.

• Compare stores across a chain, in India or the US.

• Combine footfall with AI loss prevention and queue alerts from the same camera network.

Explore the StorePulse product page or see how StorePulse works.

Frequently asked questions

How do I get foot traffic data?

For your own store, use people counting software with cameras or sensors at the entrances. Camera-based AI can often run on existing CCTV. For competitor or area data, retailers use mobile location data providers instead.

How accurate are people counters?

Accuracy depends on the method and how well the system is installed. Beam counters struggle with groups. Overhead sensors and camera-based AI are much more accurate when the camera angle and coverage are right.

What is a good retail conversion rate?

It varies widely by category. A grocery store converts most visitors, while furniture or electronics stores convert far fewer. Your own baseline is the best benchmark: track it weekly and work to improve it.

What is footfall in retail?

Footfall is the number of people who enter a store or mall in a given period. It is the Indian and British term for foot traffic.

Can CCTV cameras count people?

Yes. With AI video analytics software, existing CCTV cameras can count people crossing a virtual line. Cameras covering entrances from above or at a steep angle give the best accuracy.

How much does people counting software cost?

Cost depends on the number of stores, cameras and analytics modules, and on whether new hardware is needed. Running software on existing CCTV is usually cheaper than installing dedicated sensors at every door.

Find out how many shoppers you are losing. Book a StorePulse demo with Transline Technologies.
